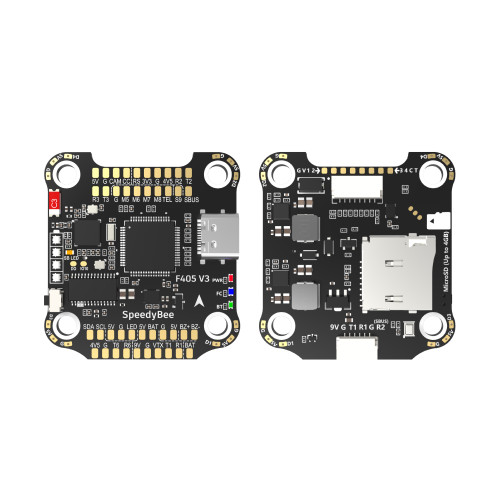

SpeedyBee F405 V3 30×30 Flight Controller

Elfogyott

SpeedyBee F405 V3 30x30 Flight Controller
SpeedyBee F405 V3 30x30 Flight Controller
SpeedyBee F405 V3 30x30 Flight Controller

Specifications
Product NameSpeedyBee F405 V3 30×30 Flight Controller
MCUSTM32F405
IMU(Gyro)BMI270
USB Port TypeType-C
BarometerBuilt-in
OSD ChipAT7456E chip
BLE BluetoothSupported. Used for Flight Controller configuration (MSP should be enabled with Baud rate 115200 on UART4)
WIFINot supported

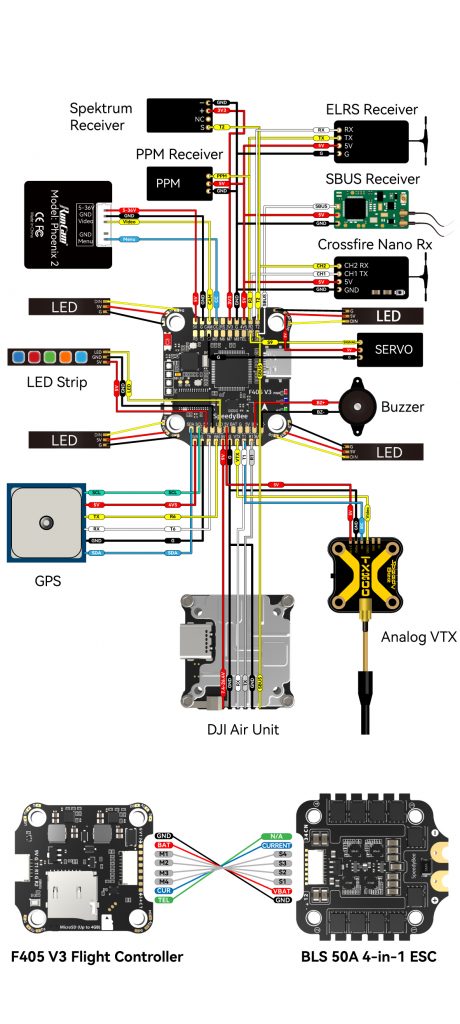

DJI Air Unit Connection WayTwo ways supported: 6-pin connector or direct soldering.
6-pin DJI Air Unit PlugSupported. Completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed.
Blackbox MicroSD Card Slot*Betaflight firmware requires the type of the microSD card to be either Standard (SDSC) or High capacity (SDHC), so extended capacity cards (SDXC) are not supported(Many high-speed U3 cards are SDXC). Also the card MUST be formatted with the FAT16 or FAT32 (recommended) filesystems. So, you could use any SD card less than 32GB, but the Betaflight can only recognize 4GB maximum. We suggest you use this 3rd party formatting tool and choose ‘Overwrite format’then format your card. Also check out here for the recommended SD cards or buy the tested cards from our store.
BetaFlight Camera Control PadYes(CC pad on the front side)
Current Sensor InputSupported. For SpeedyBee BLS 50A ESC, please set scale = 386 and Offset = 0.
Power Input3S - 6S Lipo(Through G, BAT pins/pads from the 8-pin connector or 8-pads on the bottom side)
5V Output9 groups of 5V output, four +5V pads and 1 BZ+ pad( used for Buzzer) on front side, and 4x LED 5V pads. The total current load is 2A.
9V Output2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 2A.
3.3V OutputSupported. Designed for 3.3V-input receivers. Up to 500mA current load.
4.5V OutputSupported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load.
ESC SignalM1 - M4 on bottom side and M5-M8 on front side.
UART6 sets(UART1, UART2, UART3, UART4(Dedicated for Bluetooth connection), UART5(Dedicated for ESC telemetry),UART6
ESC TelemetryUART R5(UART5)
I2CSupported. SDA &SCL pads on front side. Used for magnetometer, sonar, etc.
Traditional Betaflight LED PadSupported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LED controlled by Betaflight firmware.
BuzzerBZ+ and BZ- pad used for 5V Buzzer
BOOT ButtonSupported.
[A]. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked.
[B]. When the FC is powered on and in standby mode, the BOOT button can be used to controller the LED strips connected to LED1-LED4 connectors on the bottom side. By default, short-press the BOOT button to cycle the LED displaying mode. Long-press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled by Betaflight firmware.
RSSI InputSupported. Named as RS on the front side.
Smart Port / F.PortNot supported
Supported Flight Controller FirmwareBetaFlight(Default),INAV (INAV firmware can only use Multishot (recommended) and OneShot125. Please note that DShot is not supported.)
Firmware Target NameSPEEDYBEEF405V3
Mounting30.5 x 30.5mm( 4mm hole diameter)
Dimension41.6(L) x 39.4(W) x 7.8(H)mm
Weight9.6g
CIKKSZÁM: FPV 6988 Kategóriák: Elektronika, Repülés vezérlők / FC-k
